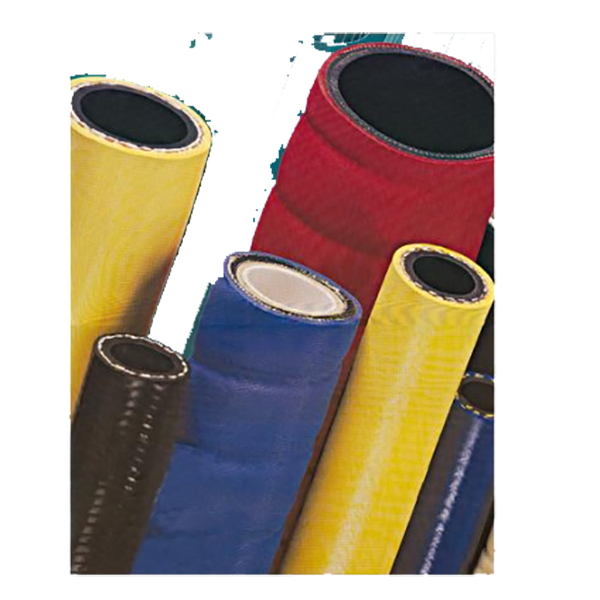

Air Hose Water Hose Suction Hose
Specification
|
Inside Diameter mm |
Layer of Cloth (layer) |
Helix Steel Wire Diameter mm |
Length of Fitting mm | Length of Hose | ||||
|
Nominal Size |
Tolerance |
Size | Tolerance | Size m | Tolerance mm | |||
| 38 | 1.2 |
2 |
3 | 2.0 | 75 | 10 | 10 | 150 |
| 51 | 1.2 |
3 |
4 | 2.6 | 100 | 15 | 10 | 150 |
| 64 | 1.5 |
3 |
4 | 2.6 | 100 | 15 | 10 | 150 |
| 76 | 1.5 |
4 |
5 | 2.6 | 100 | 15 | 10 | 150 |
| 89 | 1.5 |
4 |
5 | 3.2 | 100 | 15 | 10 | 150 |
| 102 | 2.0 |
4 |
5 | 3.2 | 125 | 20 | 10 | 150 |
| 127 | 2.0 |
5 |
6 | 3.2 | 125 | 20 | 10 | 150 |
| 152 | 2.0 |
5 |
6 | 4.0 | 150 | 20 | 10 | 150 |
| 203 | 2.5 |
6 |
7 | 5.0 | 200 | 25 | 10 | 150 |
| 254 | 2.5 |
7 |
8 | 5.0 | 200 | 25 | 10 | 150 |
| 305 | 2.5 |
7 |
8 | 5.0 | 250 | 25 | 10 | 150 |
|
Inside Diameter mm |
Working Pressure MPa |
Corresponding Burst Pressure MPa | Length of Hose | ||||||
|
Nominal Size |
Tolerance |
Size m | Tolerance mm | ||||||
| 13 | 0.8 | 0.5 | 0.7 | 1.0 | 2.0 | 2.8 | 4.0 | 20 | 200 |
| 16 | 0.8 | 0.5 | 0.7 | 1.0 | 2.0 | 2.8 | 4.0 | 20 | 200 |
| 19 | 0.8 | 0.5 | 0.7 | 1.0 | 2.0 | 2.8 | 4.0 | 20 | 200 |
| 25 | 0.8 | 0.5 | 0.7 | 1.0 | 2.0 | 2.8 | 4.0 | 20 | 200 |
| 32 | 1.2 | 0.3 | 0.5 | 0.7 | 1.2 | 2.0 | 2.8 | 20 | 200 |
| 38 | 1.2 | 0.3 | 0.5 | 0.7 | 1.2 | 2.0 | 2.8 | 20 | 200 |
| 51 | 1.2 | 0.3 | 0.5 | 0.7 | 1.2 | 2.0 | 2.8 | 20 | 200 |
| 64 | 1.5 | 0.3 | 0.5 | 0.7 | 1.2 | 2.0 | 2.8 | 20 | 200 |
| 76 | 1.5 | 0.3 | 0.5 | 0.7 | 1.2 | 2.0 | 2.8 | 20 | 200 |
